Instrument Needle valve-flange
ALSO 進口法蘭式針型閥 具安裝拆卸方便、連接牢的優點,是高壓氣體、液體最好的流量開關,本產品廣泛用于電站、煉油、制藥、石油、科學實驗、電氣工程、化工裝置和儀表測量管路中諸多行業中得以廣泛應用。

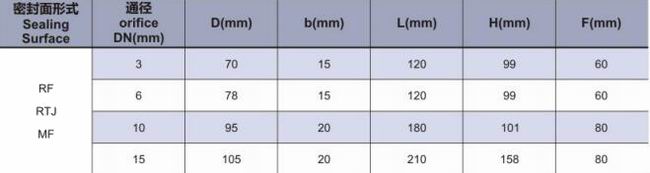

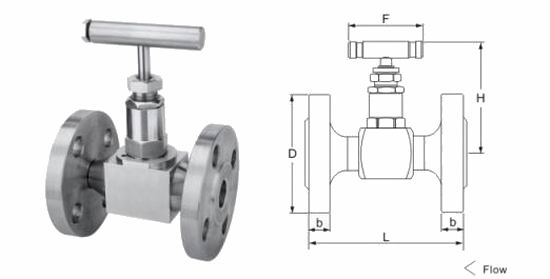

Instrument Needle valve-flange
標準 Standard:ASTM ANSI ASME GB
工作壓力 Working Pressure:150LB-2500LB,1.6Mpa-42Mpa
額定溫度 Temperayure Rating:232℃ PTFE填料 With Graphite packing(P)
648℃柔性石墨填料 With Graphite packing(G)(-H option)

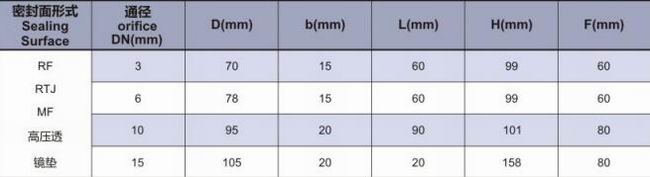

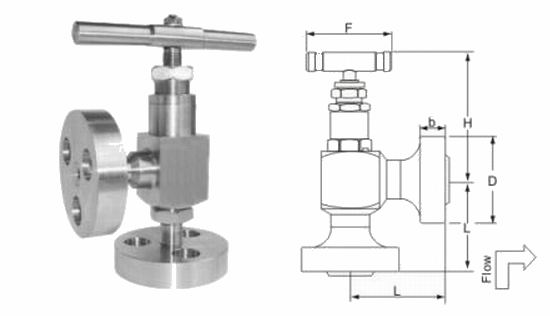

進口角式式法蘭式針型閥
Instrument Angie Needle valve-flange
標準 Standard:ASTM ANSI ASME GB
標準 Standard:ASTM ANSI ASME GB
工作壓力 Working Pressure:150LB-2500LB,1.6Mpa-42Mpa
額定溫度 Temperayure Rating:232℃ PTFE填料 With Graphite packing(P)
648℃柔性石墨填料 With Graphite packing(G)(-H option)


高壓透鏡墊為活動法蘭
